| Features:

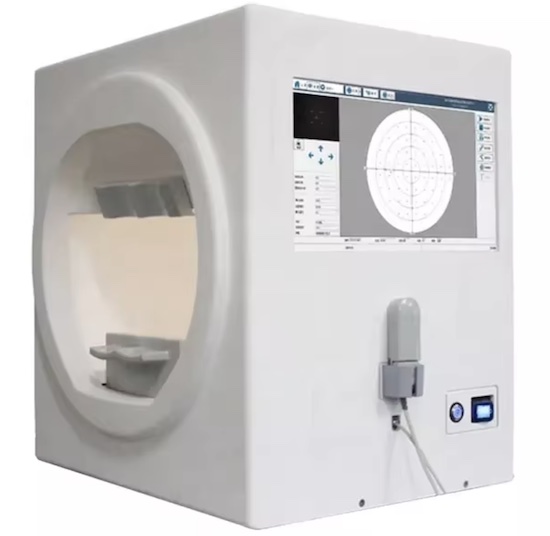

- The BIO-1000 automated perimeter absorbs the advantages of international advanced perimetry devices.
- It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced
configuration, comprehensive software inspection categories, it provide international standard 6 analysis report of glaucoma,
fundus disease, visual pathway injury and neurological diseases
- omprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring, gaze tracking/head position tracking,
automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection
- Personalized design, accurate clinical analysis, accurate and rapid examination strategy
- A variety of classic test procedures, including international standard six report analysis
Specifications:
Inspection range |
90° |
Inspection distance |
30CM |
Background light brightness |
White 31.5 asb |
Visual target brightness |
1 asb---10000 asb |
Visual target size |
Goldman Ⅲ |
Visual target interval time |
200ms |
Visual target interval time |
Standard or adjustment according to patient reflection |
Threshold test model |
Center 5º-16, center 10º-68, 24-2, 30-2, 30º-60º, nasal step |
Upper Threshold test model |
30º-40 , 30º-76, P-60, 60º-81, 60º-120, 1 90º-135 nasal side |
Special detection strategy |
Esterman monocular, Esterman binocular, user-customized test;
150º driver monocular fast detection, 150º driver monocular standard detection , upper 36°detection, blind spot detection, 150º horizontal straightness detection |
Pupil size test |
Automatic |
Fixation monitoring |
Blind spot monitoring, eye position video, motoring |
Environment light detection |
Automatic |
Analysis software |
Reliability analysis, single vision report, triple visionreport, GPA half vision analysis,
GPA glaucoma developing analysis, VFI vision index analysis |
Operation system |
Win7 above |
Power |
100-240V , 50-60Hz |
Dimension |
570x400720mm |
Weight |
23kg (44lb) |
| |
