| Features:

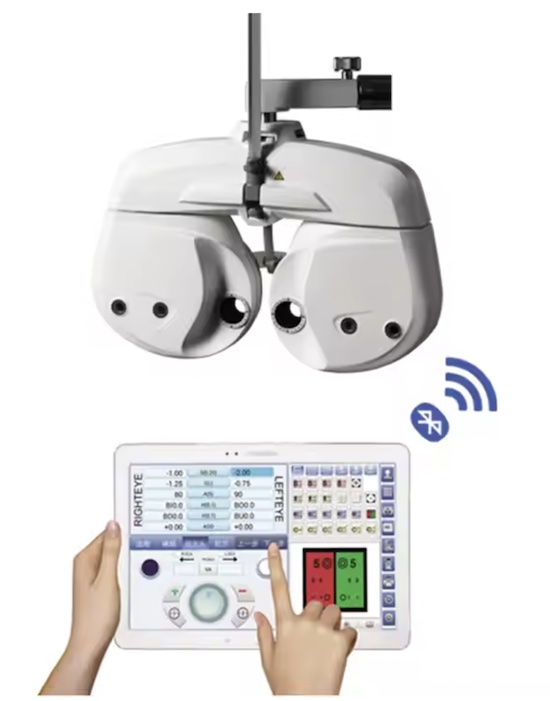

1. Compact and slim design, smaller size, lens switch fast and smoothly, provide more comfortable optometry experience.
2. Blue-tooth wireless communication, provide freedom of movement.
3. Simple operation interface, integrate abundant information.
4. Support data transmission with external devices such as Auto refractometer/Chart Monitor etc.
Specifications:
Sphere |
-19.00~+16.75D (0.25D/0.50D/1.00D/3.00D steps) |
Cylinder |
-6.00D~+6.00D 0.25D steps |
Cylinder Axis |
0 ~ 180°(step: 1 / 5 / 15 / 30 / 45°) |
Axis angle |
0~180° (1°/5°steps) |
Pupil distance |
Distant range 52~80mm Close range 48~76mm 0.5/1mm steps |
Rotary Prism |
0~20Δ (0.1Δ/0.5Δ/1Δ steps) |
Cross Cylinder Lens |
±0.25D |
Retinoscope |
+1.50D(67cm), +2.00D(50cm) |
Auxiliary Lens |
PH, Binoculus (=1.0mm; RMV/RMH; PD Lens |
RL(Right eye), GL(Left eye); Polaroid(Right eye 135°/45°), (Left eye 45°/135°) |
Prism(Right 3ΔBU , 6ΔBU), (Left 3ΔBD, 10ΔBI); Cross Cylinder Lens(±0.50D Axis=90°) |
CV head size |
381mm×286mm×111mm 3.8kg |
Table size |
243mm×171mm×7mm 0.5kg |
Power supply |
AC220V 50Hz or AC110V 60Hz, 90W |
|
|
