| 1. Usage

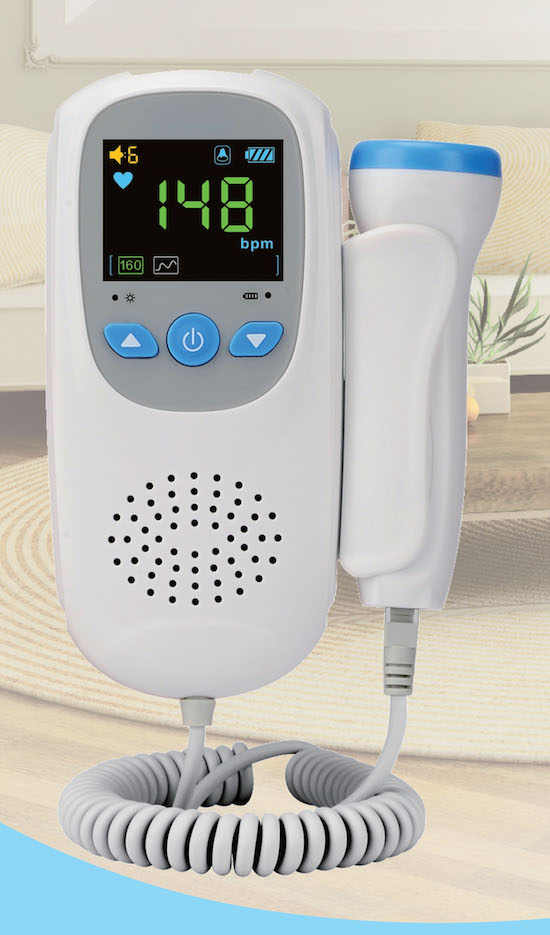

FD-610 ultrasonic fetal doppler meets the fetus daily check and routine examination at home, clinic,community and hospital. the probe can be 2MHz, 2.5MHz or 3MHz.
2. Features
- Easily and convenient operate
- High-fidelity, crystal clear sound
- Earphone and speaker are feasible
- High sensitivity doppler probe
- Low ultrasound dosage
- Display with color LCD
- Unique ergonomic design
3. Technical Specification
- Ultrasound frequency: 2MHz
- Ultrasound intensity: <10mW/cm2
- Power supply: Alkalinity battery
- Display: 45mm×25mm LCD
- FHR Measuring range: 50~240bpm
- FHR resolution: 1bpm
- FHR accuracy: ±1bpm
- Power consumption: <1W
- Dimension: 135mm ×95mm ×35mm
- Weight: 500g
4. Configuration
- Main body
- Alkalinity battery
- 2MHz probe
5. Option
- Earphone
- 2.5MHz, 3MHz probe
- Carry bag

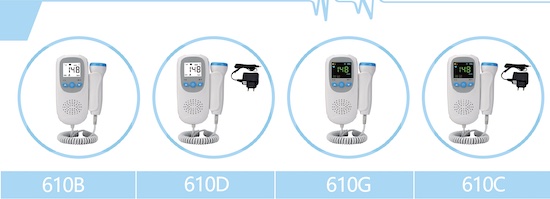

6. FD-610 Series Difference Table
Functions |
FD-610D |
FD-610C |
FD-610B |
FD-610G |
Doppler type |
Continuous |
Continuous |
Continuous |
Continuous |
Display |
B/W |
Colour |
B/W |
Colour |
Backlight |
Yes |
Yes |
Yes |
Yes |
Build-in speaker |
Yes |
Yes |
Yes |
Yes |
Various display modes |
No |
Yes |
No |
Yes |
Volume adjust |
Yes |
Yes |
Yes |
Yes |
Battery indicator |
Yes |
Yes |
Yes |
Yes |
FHR display |
Yes |
Yes |
Yes |
Yes |
FHR curve |
No |
Yes |
No |
Yes |
Auto power off |
Yes |
Yes |
Yes |
Yes |
Various work modes |
Yes |
Yes |
Yes |
Yes |
Alkalinity battery |
No |
No |
Yes |
Yes |
Ni-Mh battery |
Yes |
Yes |
No |
No |
Charge in device |
Yes |
Yes |
No |
No |
|
|
