| Features:
It is suitable for clinical departments to carry out airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluder, which can enable physicians to accurately complete tracheal intubation under direct vision. Endobronchial intubation positioning.
Product use
It is suitable for clinical departments to carry out airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluder, which can enable physicians to accurately complete tracheal intubation under direct vision. Endobronchial intubation positioning.
Product specifications
| Visual Field |
90°± 10% |
| Visual direction |
0° |
| Observe depth |
3-100mm |
| Intubation diameter |
2.8mm |
3.8mm |
4.8mm |
5.2mm |
5.8mm |
| Suction channel |
0 |
1.2mm |
2.0mm |
2.2mm 2.4mm |
2.6mm |
| Effective work length |
600mm |
| Curved angle |
upward 150° downward 130° |
| Illuminance |
≥800lux |
| Pixel |
2,000,000 pixels |
| Display size |
3.5” TFT LCD |
| Color |
True colorful |
| Revolve angle |
Up to down 0-180°,left to right 0-330° |
| Resolution |
960 * 240 |
| Lithium battery |
Built-in 3.7V polymer battery |
| Charger input |
AC 100-240V, 50-60Hz |
| Charger output |
DC 5V, 1000mA |
| Battery capacity |
1850mA |
| Charging time |
<3 hours |
| Discharge time |
> 2.5 hours |
| Charge times |
> 600 times |
| After-sales service |
After-sales service |
Product configuration
| ITEM |
QTY |
| 3.5inch display |
1set |
| operative section |
1pc |
| Recharger battery |
1pc |
| Pressure compensation cap |
2pcs |
| Waterproof cap |
2pcs |
| Reusable biopsy valve |
2pcs |
| Suction button |
2pcs |
| Leak detector |
1pc |
| Sealing Ring |
2pcs |
| Cleaning brush |
1pc |
| laveur |
1pc |
| SD save card |
1pc |
Different Models:

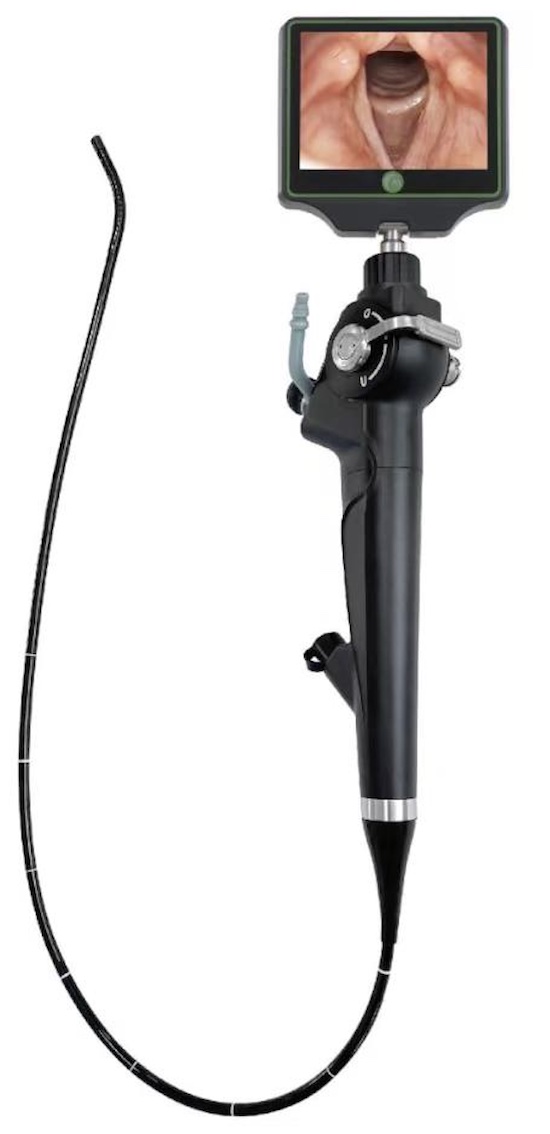

MJ-KR-4: Tube 2.8mm or 3.8mm, without phlegm sucton
MJ-KR-6: Tube 4.8mm or 5.2mm or 5.8mm, wiith phlegm sucton
| |
