| Features:
HF-610B Syringe Pump is with the classic single channel design. It is open system and can accept different syringe brand after calibration. The software compensation error is within±2% after calibration. It is widely used in ICU, NICU, pediatrics, internal medicine, surgery, obstetrics and gynecology, oncology, emergency department and outpatient infusion room. Double CPU and numeric keypad make it more user friendly.
Specifications:
Injection Mode:
Constant rate, time/volume mode, drug weight mode, micro-mode, programmable mode, drug library mode
Syringe Size:
5ml, 10ml, 20ml, 30ml, 50/60ml，auto-recognition
Flow Rate:
5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h
20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h
50/60ml: 0.10ml/h-1200.00ml/h
Increment:
0.01ml/h
Alarm:
Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error,
syringe error, low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error, finished! KVO.
Display:
3.5’TFT color LCD, 10 level brightness adjustable
Battery:
Rechargeable Lithium battery, DC11.1V, 3000mAh; operating time: ≥9h @5ml/h
Event Log:
10000 event log
Classification
Class II, Type CF; IPX4
|

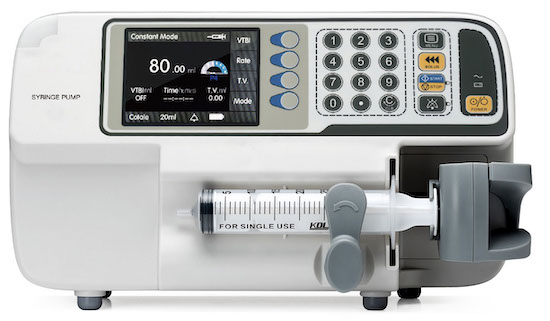

HF-610B One Channel

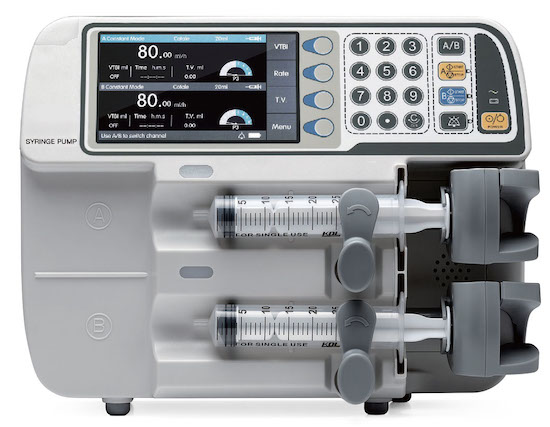

HF-620B Two Channels
|
