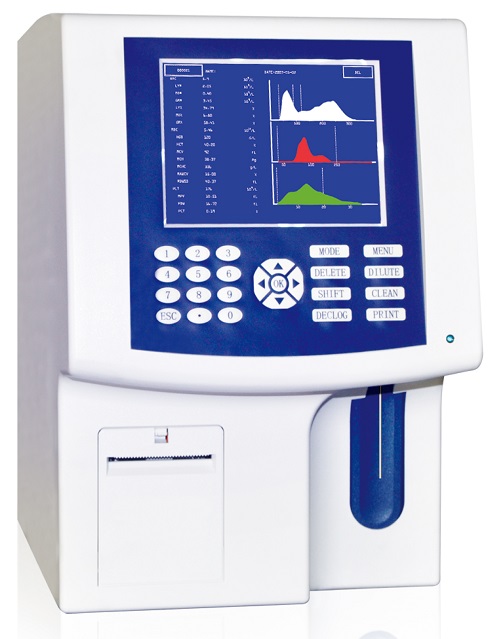

HY-3200 Fully Auto Hematology Analyzer
Technological parameter:
--Sample Volume: 10ul (distal blood) 20ul (venous blood)
--Throughput: 60 test /hour
--Measurement theory: Electro-impedance, photometric analysis
--Display: LCD
--Printing mode: Internal thermal printer
--Output: RS232
--Volume/ weight: 330*380*499mm 20kg
--Voltage/power: AC110-220 unlimited 50/60Hz 180VA

Testing items: 19 parameters + 3 histograms
--WBC, LY (#), LY(%), MO(#), MO(%), GR(#), GR(%)
--RBC, HGB, HCT, MCV, MCH, MCHC, RDWCV, RDWSD
--PLT, PCT, MPV, PDW
--WBC, RTC, PLT Histogram

Linearity range:
--WBC 0.0-99.9 (X 10 3 /µL)
--RBC 0.0-99.99 (X 10 3 /µL)
--HGB 0.0-30.0 (g/dL)
--PLT 0-999 (X 10 3 /µL)

Accuracy (CV%):
--WBC<3.0%   RBC<2.0%
--PLT<3.0%      HGB<1.5%
--HCT<2.0%     MCV<1.5%
--MCH<2.0%     MCHC<2.0%
--PCT< 3.0%     MPV<3.0%
--PDW<3.0%

Download Literature:
HY-3200 Hematology Analyzer
Right click and save as... to download the literature


HY-3200 in Youtube:

https://youtu.be/kHA3HLzidrc

https://youtu.be/zVE1hC1ATkQ
