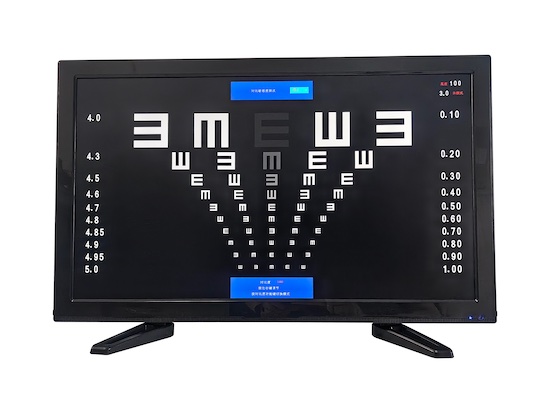

LCD Chart Projector LCP - 150 has multiple extended functions, 23 inch LED backlit screen, polarized charts is provided for binocular test. Various kinds of tests meet the diverse needs of the measurement. Quick test list- Pick ten or less frequently used tests to establish your own quick test list. It can be connected with computer, DVD player or input with multi - media signal through VGA/AV/YPBPR/USB connections as a multi -media player. Excellent programming give full play to the features of CPU
Features:

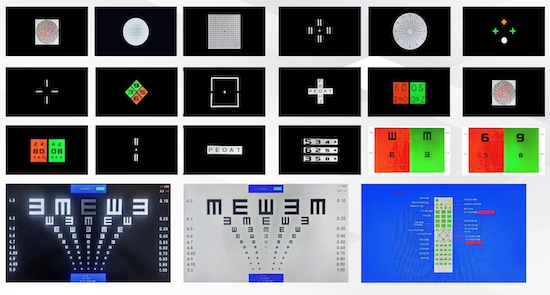

--Multi-functional charts meet different testing request
--Connection makes a complete work Polarized charts for binocular test system
--External port on LCP-150 provide for USB flash disk connection
--Easy mounting and operation
--Sample Position: 5 positions
Specifications:
Screen:
-
23’’ LCD (Color) High resolution Monitor
- Resolution: 1920*1080 pixels
- Dot pitch: 0.2652mm
- Screen ratio: 16:9
- Visible Size: 513.8*291mm
Brightness: 250cd/m2
Chart Versions: E,C, Letter, Number, Childdren
Working distance: 1-6 meters
Remote controlling: Distance ﹥8m
Power Supply: 100-240V AC, 60/50Hz
Dimension: 590(W)*365(H)*60mm(D)
Weight: 5.5KG
Standard Accessories:
- Remote Control
- Red-green glasses
- U Disk
- Hanging Bracket
- AC-DC Adapter
- Power Cable
|
|
|
