| The DR flat panel detector system is an X-ray direct conversion technology that converts X-ray image information into digital image information, with few imaging links.
Features:
1. Wireless card type flat panel detector
2. Stable and reliable AED control
3.139 μm pixel size, 16-bit ADC high-definition image details
4. Intelligent workflow, high battery life
5. Support 2. 4GHz and 5GHz wireless transmission

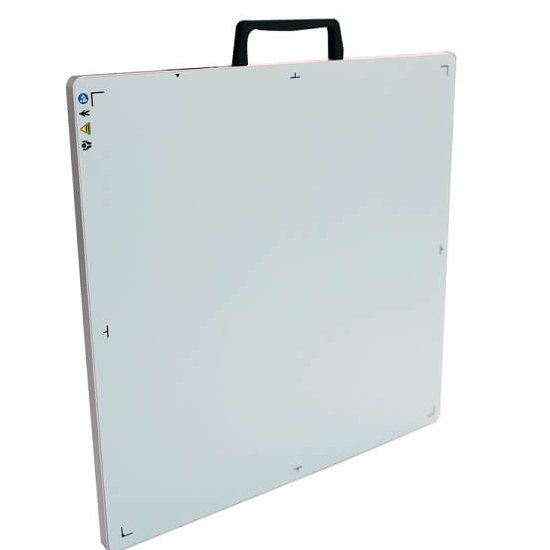

Main Specifications (NK4343W) :
Detector Type: Amorphous Silicon.
Scintillation Type: Cesium Iodide
Effective imaging area (inch): 17X17
Pixel Matrix: 3072 X 3072
Pixel size (μm): 139
AD conversion bits (bit): 16
Spatial resolution (lp/mm): 3.6
X-ray energy range: 40-150kv
Battery life (hours) : 8
Trigger Mode: AED/Software/Outer
Dimensions (mm): 460 X 460x 15
Detector Weight (kg): 3.8KG without battery
Working voltage: AC 100-240V, 50-60Hz
Power: 24V DC 2.5A
Shell panel material: carbon Plate, Aluminum Alloy
Operating temperature (“C): 10~35
Operating humidity (% RH): 30~85 (non-condensing)
Different Models:
NK3543W: Effective imaging area: 14X17 inch (35x43cm)
NK4343W:
Effective imaging area: 17X17 inch (43x43cm)
|
|
