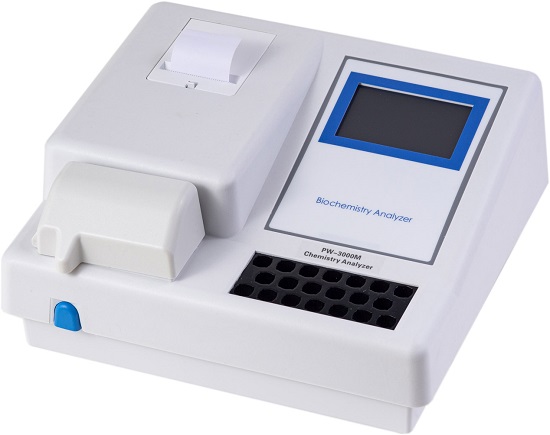

PW-3000M/P Semi Auto Chemistry Analyzer

Model

PW-3000M

Reading Cuvette

Quartz flow through cell

Aspiration Volume

450µL-800µL

Incubator

20 incubation positions

Photometric System

Light Source: 6V/10W halogen lamp , standby function

Wavelength:
340,405,492,510,546,578,620nm (2 more filter on request)

Thermostatic Control

Temperature: 25, 30, 37°C

Measuring System

Method: End point, Fixed time, Multistandard, Bichromatic and Immunoturbidimetric, etc

Mearsuring Range: 0-3.000 O.D

Photometric Linearity: ±2% (0-3.000 O.D)

Photometric Accuracy: ±1% (0-3.000 O.D)

Drift

<0.005 O.D in 60 minutes

Test Item

T.BILI

r-GT/GGT

CHO

Ca

APOB-1/B

CHE

D.BILI

ALP/AKP

TG

Cl

APOB

CREA

TP

UREA

CK

P

CK-MB

Mg

ALB

CREA

LDH

C

ASO

AFU

Lactic Acid

ALT/GPT

UA

a-HBDH

CO2

FMN

LP(a)

AST/GOT

GLU

AMY

LDL-C

HDL-C

CHE

LA

TBA

ADA

HS-CRP

PA

Fe

Cu

Zn

C3

C4

IgG

IgM

IgA

drug and toxicity, etc

Quality Control

Excellent Q.C function, Q.C chart can be displayed and printed

Dispaly

Back-light LCD, color touch screen

Storage

Over 180 programs, 3000 test results

Printer

Built-in thremal printer

Software

for computer communication on request

Interface

RS-232 serial port, USB

Power Supply

AC 110V/60Hz or 220V/50Hz

Dimension

34cm x 38cm x 18cm

Weight

8.0 Kg


Send Quick Inquiry
Your Name: Required
Your E-mail: Required
Subject: Do Not Change It
Message:



PW-3000B in YouTube:

https://youtu.be/5T0lRnCqYWQ

Difference:
PW-3000M 5 inch touch screen
PW-3000B 7 inch touch screen
