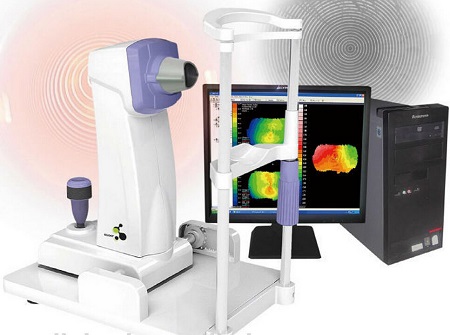

SW-6000 Corneal Topography

Brief Introduction:
By PLACIDO cone, 31 rings, a total of 7936 points. Through calculation and analysis, used in the clinical diagnosis of corneal astigmatism, quantitative analysis of corneal shape, display the corneal curvature by data or different colors, can display axial curvature map, tangential curvature map, height map, simulated corneal lens map and corneal 3D map. Can be used in preoperative examination and postoperative effect evaluation of corneal refractive surgery, can guide wearing contact data lens, to improve the accuracy of adaptive contact lens.

Specification:
1. Measuring method: Placido cone
2. Coverage Diameter: 10.91 mm
3. Measuring range for curvature radius: 5.5mm-10.0mm
4. Diopter range: 33.75D-61.36D
5. Precision: ±0.02mm
6. Placido rings: 31 rings
7. Measurement points: 7,936 points
8. Display axial curvature map, tangential curvature map, elevation map, imitated keratoscope map and 3D cornea map
9. Image output: High-quality color inkjet printer
10. Adjust range: left/right 86mm ; forward/backward 40mm ; up/down 30mm ; chinrest 5omm
11. Cornea contact lenses fitting function
12. Keratoconus detecting function
13. Output: Optional printer
