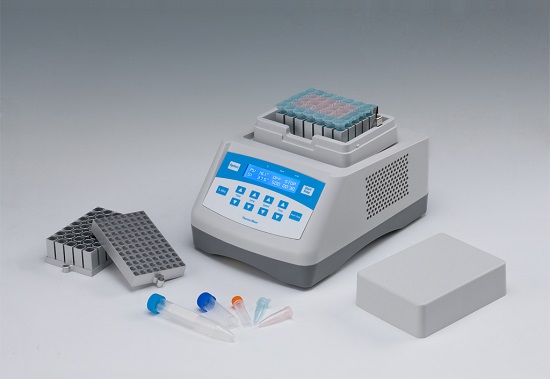

Thermo Shaker Incubator

Descriptions:
TCS10/TS100 Thermo Shaker is a temperature controlled vortexer, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long time, safety and sample integrity.

Features:
- LCD display. It is easy to setup and use.
- Reliable design with inner extra temperature protection.
- Each thermo shaker is equipped with lifter that is easy to replace different blocks.
- Digital accuracy and convenience.
- Precision wells for uniform thermal transfer.
- Assorted blocks for a wide variety of tube sizes.
- Brushless DC Motor: noiseless long service life maintenance-free.
- Conform to CE safety standard.
- Accurately control and display time, temperature and speed.

Applications:
- Storing samples at ice bucket temperatures
- Storing enzymes or DNA libraries at your work station
- Transporting samples from the field at exactly the right temperature
- Heating samples in the field
- Enzyme reactions and deactivations
- PCR sample preparation

TS100 Specifications:

Temp setting range

0 ℃ ~100 ℃

Temp control range

RT.+5 ℃ ~100 ℃

Time range

1min ~ 99h59min

Temp accuracy

≤±0.3 ℃

Display accuracy

0.1 ℃

Temp uniformity

≤±0.3 ℃

Shaking speed

200~1800rpm

Orbit

3mm

Heating time

  ≤12min(from 25 ℃ to100 ℃ )

Multi point running

Yes(Max 5points)

Auto running

Yes

Auto resume to run

Yes

Storage at 4 ℃

Yes

Power supply

150W

Voltage

AC220V/50-60Hz

Fuse

250V 3A Ф5x20

Dimension(mm)

260x195x150

Weight(kg)

7.0


TCS10 Specifications:

Temp setting range

0 ℃ ~100 ℃

Temp control range

RT.-20 ℃ ~100 ℃

Time range

1min ~ 99h59min

Temp accuracy

≤±0.3 ℃

Display accuracy

0.1 ℃

Temp uniformity

≤±0.3 ℃

Shaking speed

200~1500rpm

Orbit

3mm

Heating time

 ≤15min(from 25 ℃ to100 ℃ )

Cooling time1

≤10min(from 100 ℃ to 25 ℃ )

Cooling time2

≤15min(from RT to RT.-20 ℃ )

Multi cycle

Yes(Max 99times)

Auto heating

Yes

Auto running

Yes

Auto resume to run

Yes

Storage at 4 ℃

Yes

Power supply

150W

Voltage

AC110-220V/50-60Hz

Fuse

250V 3A Ф5x20

Dimension(mm)

260x195x150

Weight(kg)

7.5


Optional Block:

MD30

0.2ml

96

MD31

0.5ml

54

MD32

1.5ml

35

MD33

2.0ml

35

MD34

0.5ml+1.5ml

15+20

MD35

0.2ml

96

MD36

5ml

24

MD37

10ml

15

MD38

15ml

12

MD39

50ml

6


Download Literature:
TS100 Thermo Shaker Incubator (only heating)

TCS10 Thermo Shaker Incubator (heating and cooling)
