| Features:
Built-in rechargeable battery universal interface charging, universal USB interface charging.Multimedia system: The host has a built-in multimedia system, which can realize photo, video and storage with one key. memory 8G, upgradable memory.
Machine parameters
- Display: 3.0″TFT.
- Camera pixel: 2 million.
- Depth of Field: 10-60mm.
- Illuminance≥800Lux.
- Built-in rechargeable battery universal interface charging, universal USB interface charging.
- Multimedia system: The host has a built-in multimedia system, which can realize photo, video and storage with one key. memory 8G, upgradable memory.
- The monitor side-mounted design effectively shortens the length of the whole machine and makes it easier to enter the oral cavity.

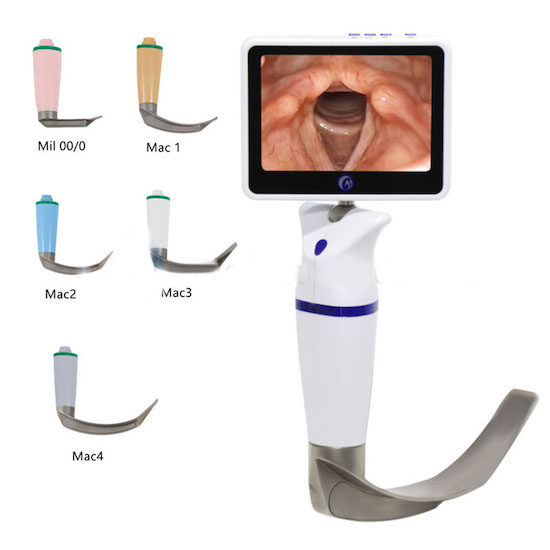

- Laryngeal blade size: optional large adult, adult, small adult, child, neonate, difficult airway.
- Compatibility: The main unit can choose to fit 4 sizes of disposable laryngoscopes and rigid endoscopes.
- Safety: with wear resistance, anti-drop, anti-splash performance, to meet the use of special rescue environment.
- Convenient operation: The connection between the handle and the host adopts rotary plug, which is conducive to rapid intubation and clinical rescue.
Function parameter
- Automatic shutdown: light-sensing design, automatic shutdown function when the image is still.
- Low battery life: With power management function, low battery life lasts for 1 hour.
- Battery display: with battery display and low battery indicator functions.
- Intelligent defogging: The front end of the lens adopts an intelligent temperature control system to realize the instant anti-fogging function, which can be used immediately after power on.
Normal working environment
Temperature: 10℃～40℃
Humidity: 10%～90%
Atmospheric pressure: 500hpa～1060hpa

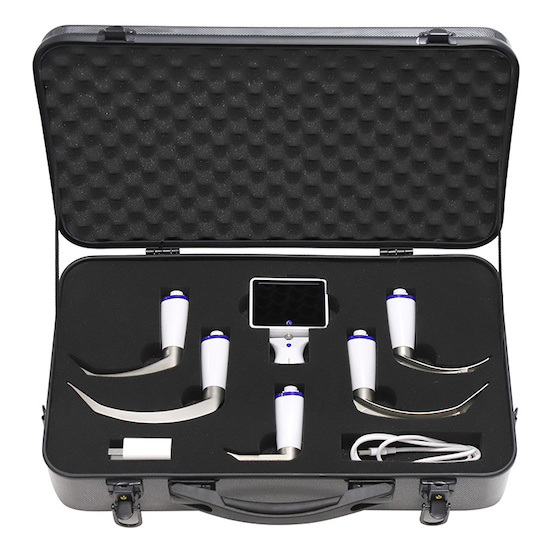

Configuration list
Monitor
Battery
Charger
Usb data cable
1 blades (adult)
Waterproof cover
Different Models:
GSVL-123: Resuable Blade
GSVS-124: Disposable Blade
| |
