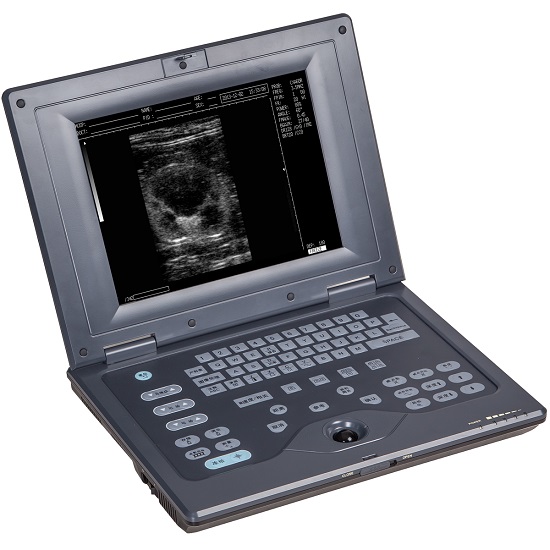

WED-2018V Vet Ultrasound Scanner

Features:
-- WED-2018V adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies and so onAll these technologies can endure its image with clarity, stability and high resolution in the wide medical screen.
-- Combined power supply mode of AC adapter and built-in chargeable battery, 3 battery charging modes and the low power consumption and advanced power management technology promise more lasting battery operation. The handle structure and plastic injection model make whole units be small volume and light weight, so it can satisfy out door diagnosis.

Main Unit Parameters

Scanning Model

Electronic Linear Array, Electronic Convex Array

Cine-loop

≥500 frames

Display Depth

≥240mm; 16 levels are adjustable

Display Mode

B, B+B, B+M, B+M/M, M, and 4B

Focus Adjustment

Focus Number, Focus Distance, Focus Position

Image Reversal

Up and down, Left and Right, Black and White

Image Processing

Image Smoothing/Sharpening, tissue harmonic, Gamma Correction, Histogram,
Pseudo-color

Real-time Depth

16 levels; Zoom

Measurement

Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses,

cattle, sheep, pigs, cats and dogs etc.)

Battery Capacity

≥4400mAh



Download Literature:
WED-2018V Vet Ultrasound Scanner
