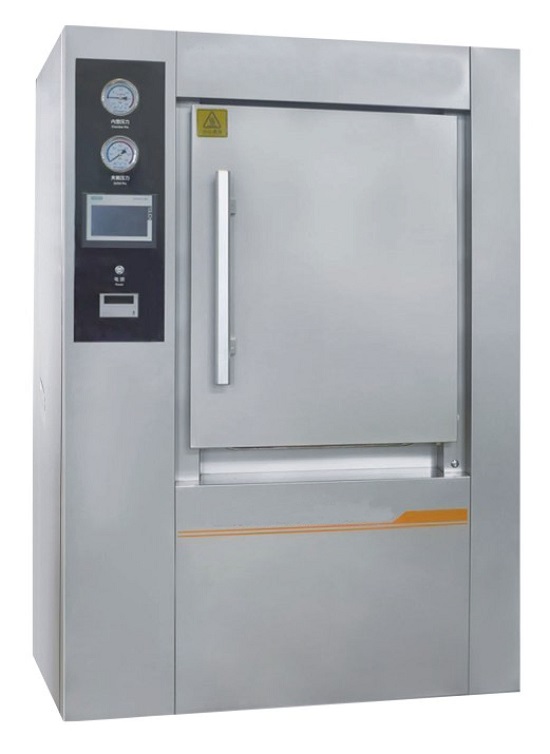

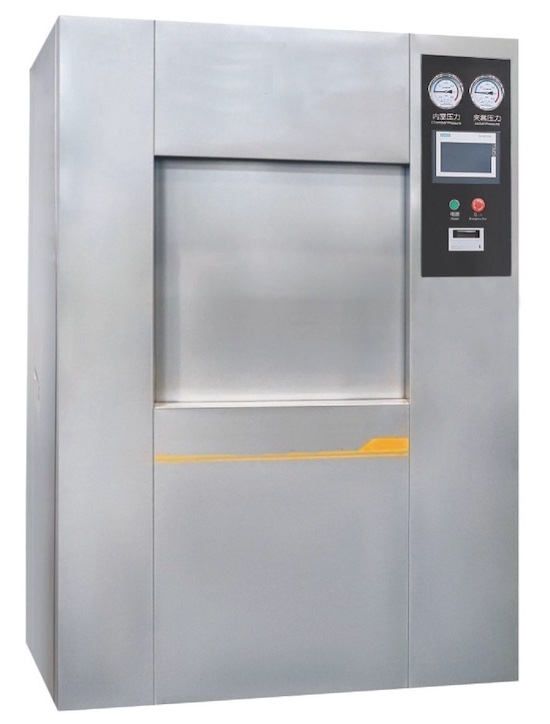

| WG series pulsating vacuum sterilizers use saturated steam as the sterilizing medium, and relying on the physical property that saturated steam can release a large amount of latent heat and moisture during condensation, it renders items to be sterilized in a highly heated and humid state. After a period of heat preservation, purpose of sterilization is achieved. The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, and finally vacuum dehumidiffication is realized in a jacket device to dry the sterilized items.
WG series pulsating vacuum sterilizers are mainly used in disinfecting supply rooms of hospitals, third-party disinfecting supply centers, and operating rooms, where medical devices, dressings, rubber, lumen devices, implantable devices, and liquids are sterilized.
Main Parameters and Utilities
Design Pressure |
0.245Mpa |
Working Pressure |
0.225Mpa |
Design Temperature |
139℃ |
Working Temperature |
105-134℃ |
Vacuum |
-0.09Mpa |
Temperature Equilibrium |
≤±1℃ |
Water Source Pressure |
0.15-0.3Mpa |
Compressed Air Pressure |
0.3-0.7Mpa |
Steam Pressure |
0.3-0.7Mpa |
Power |
AC380V, 50HZ
The three-phase and five-wire system AC380V,50HZ |
Size & Utilities
Model |
Overall Size L×W×H (mm ) |
Chamber Size L×W×H (mm ) |
Steam Consumption |
Tap Water Consumption |
Power(KW) |
Net Weight(KG) |
| WG-0.1 |
950×1200×1750 |
560×400×450 |
14KG |
25KG |
2+12KW |
700KG |
| WG-0.15 |
1050×1200×1750 |
750×400×450 |
14KG |
25KG |
2+12KW |
800KG |
| WG-0.2 |
1120×1305×1840 |
1000×450×450 |
16KG |
30KG |
2+24KW |
850KG |
| WG-0.25 |
1100×1350×1900 |
800×600×600 |
18KG |
35KG |
2+24KW |
900KG |
| WG-0.36 |
1300×1350×1900 |
1000×600×600 |
25KG |
40KG |
2+24KW |
1000KG |
| WG-0.6 |
1500×1360×1950 |
1200×610×910 |
30KG |
45KG |
3+36KW |
1400KG |
| WG-0.8 |
1800×1360×1950 |
1500×610×910 |
40KG |
50KG |
3KW |
1600KG |
| WG-1.2 |
1750×1440×1950 |
1450×680×1180 |
48KG |
55KG |
4KW |
1800KG |
| WG-1.5 |
2150×1440×1950 |
1850×680×1180 |
55KG |
60KG |
4KW |
2000KG |
| WG-2.0 |
1950×1750×2200 |
1600×900×1400 |
65KG |
65KG |
4.5KW |
2500KG |
| WG-2.5 |
2300×1750×2200 |
1950×900×1400 |
75KG |
75KG |
6KW |
3000KG |
| WG-3.0 |
2700×1750×2200 |
2400×900×1400 |
90KG |
90KG |
8KW |
3500KG |
|
|
